XDimensus 300

計測用X線CTシステム

Add Bookmark

“新次元”計測

XDimensus 300

XDimensus 300は対象ワーク内部の3次元内外寸法計測が可能な計測用X線CTシステムです。

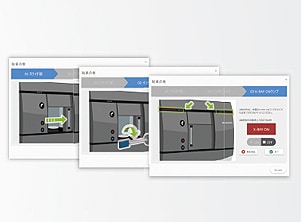

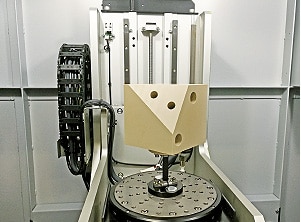

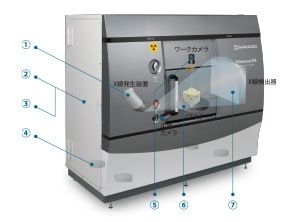

優れた解像度と広い視野を実現する高解像度広視野X線検出器や、X線発生効率を当社比で約3倍に高めた自社製の新型X線発生装置、優れた操作性を実現する新ソフトウェアだけでなく、装置内部の温度を一定に保つ空調装置と高い形状安定性を実現するフレーム、超高精度ワーク位置決めステージにより、従来の観察用X線CTシステムではなしえなかった測定精度を実現しています。

樹脂成形部品やアルミダイカストなどの工業製品の内外を含めた寸法計測に対応し、これまでに無かった新たな測定機を提案します。

特長
