DET#n flame is out [Error Code:4109 4110 4111 4112]
Cause¶
The following causes are possible. Please check each item.
Solution¶
Detector gas flow¶

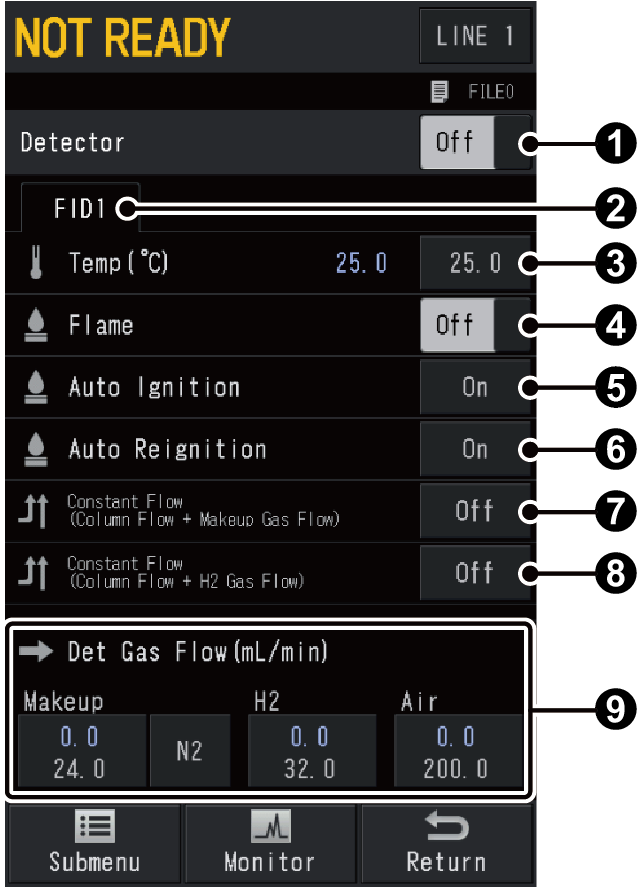

Press HOME button - [Detector] to display [Detector] screen. Check that hydrogen gas, makeup gas, and air are supplied properly. Check also that their flow rates are appropriate.
When several detectors are configured in the analytical line, press a tab to switch detectors or press [LINE] in the top-right of the screen to switch lines and make settings.
* Actual value is displayed in the upper line, and the set value is displayed in the bottom line.
For each detector, the supply pressure required for each set flow is shown below.
Hydrogen |
Air |
Makeup Gas (BID : DCG) (ECD : ECD gas) |
Note |
|
|---|---|---|---|---|
FID (Capillary column) |
32.0 mL/min |
200.0 mL/min |
24.0 mL/min |
-- |
FID (Packed column) |
32.0 mL/min |
200.0 mL/min |
Total flow rate of carrier gas and makeup gas : 20 to 50 mL/min |
-- |
FTD (N-mode) |
1.0 to 2.0 mL/min |
140.0 to 150.0 mL/min |
10.0 to 30.0 mL/min |
-- |
FTD (P-mode) |
3.0 to 6.0 mL/min |
140.0 to 150.0 mL/min |
10.0 to 30.0 mL/min |
-- |
FPD (P-mode) |
62.5 mL/min |
90.0 mL/min |
-- |
-- |
FPD (S-mode) |
40.0 mL/min |
60.0 mL/min |
-- |
-- |
FPD (Sn-mode) |
75.0 mL/min |
65.0 mL/min |
-- |
-- |
ECD |
-- |
-- |
15.0 mL/min (Flow path A)*1 30.0 mL/min (Flow path B)*1 |
Nitrogen (N2) is used |
BID |
-- |
-- |
Depends on the column flow rate. Less than10.0 mL/min : 50.0 mL/min 10.0 mL/min to15.0 mL/min : 70.0 mL/min More than 15.0 mL/min : 100.0 mL/min |
Helium (He) is used |
SCD |
80.0 mL/min |
-- |
40.0 mL/min |
Oxygen for he furnace : 10.0 mL/min Oxygen for the ozone generator : 25.0 mL/min |
*1 ECD-2010 Exceed column insertion length differs depending on the flow path. Refer to Method for distinguishing the different ECD-2010 Exceed flow paths to determine the flow path.
Detector temperature¶
If the detector temperature is low, it may be difficult to ignite. It is recommended to set the detector temperature to 200 ° C or higher.
Press HOME button - [Detector] to display [Detector] screen.
When several detectors are configured in the analytical line, press a tab to switch detectors or press [LINE] in the top-right of the screen to switch lines and make settings.
Column connection¶
Check that the column is connected. Check also that there is no leak at column connections.
Check that the column insertion length is appropriate.
Capillary column¶
In the case of Graphite Ferrule
In the case of ClickTek Ferrule
Packed column¶
In the case of Packed Column
In the case of Glass Column
Nozzle clogging (FID)¶
Check that the nozzle is not clogged. If any clog is found, maintain or replace the nozzle.
Inspection of FID Collector and Replacement of Jet
Column flow¶
- If the flame went off during back flush, decrease the back flush pressure.
- If the column flow is high, e. g. , when using a wide bore column, decrease the column flow or makeup gas flow. If it is difficult to change the column flow, increasing the hydrogen gas flow may prevent flame extinguishment.
