放射率測定システム​

フーリエ変換赤外分光光度計

FTIR本体の干渉計側面の平行光取り出し口へ、装置外部の光源または加熱した試料から発生する赤外光を導入し、そのスペクトル強度分布を測定する付属装置です。この付属装置を用いて、加熱試料および試料と同じ温度の黒体炉の放射赤外光の強度分布を測定し、その比を計算することによって、試料の各波長における放射率(輻射率)を求めることが可能となります。
測定可能温度範囲は200 ℃以上です。温度上限は標準品で500 ℃、最大800 ℃まで対応可能です。

放射率測定システム​

放射率測定システム​の外観

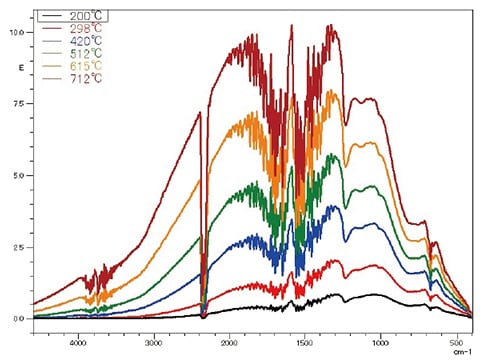

  • 黒体炉での放射スペクトル

    黒体炉での放射スペクトル

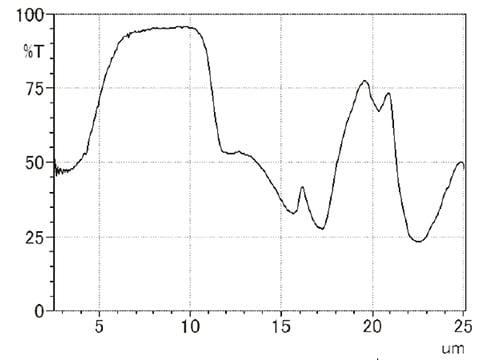

  • アルミナの分光放射率スペクトル

    アルミナの分光放射率スペクトル

注)IRSpiritシリーズには対応していません。

対象試料

セラミック片、ガラス板など
