SH-I-5MS

概要

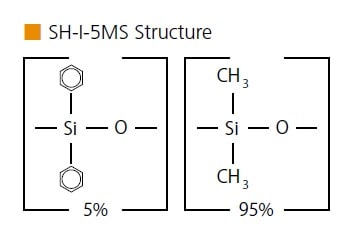

微極性液相：Crossbond™ 5% ジフェニル / 95% ジメチルポリシロキサン
GC/MS 向けの超低ブリード汎用カラム
USP G27 液相相当カラム
相当品：HP-5ms UI, HP-5ms, DB-5, Ultra-2, CP Sil 8 CB, SPB-5, Equity-5

価格表（島津GLCサイトへ）

P/N	ID（内径）	df（膜厚）	長さ	温度範囲
227-36342-01	0.10 mm	0.10 µm	10 m	-60 to 330/350 ℃
227-36015-01	0.18 mm	0.18 µm	20 m	-60 to 330/350 ℃
227-36016-01	0.18 mm	0.30 µm	20 m	-60 to 330/350 ℃
227-36017-01	0.18 mm	0.36 µm	20 m	-60 to 330/350 ℃
227-36018-03	0.20 mm	0.33 µm	12 m	-60 to 330/350 ℃
227-36018-01	0.20 mm	0.33 µm	25 m	-60 to 330/350 ℃
227-36018-02	0.20 mm	0.33 µm	50 m	-60 to 330/350 ℃
221-75940-15	0.25 mm	0.25 µm	15 m	-60 to 330/350 ℃
221-75940-30	0.25 mm	0.25 µm	30 m	-60 to 330/350 ℃
227-36019-01	0.25 mm	0.25 µm	60 m	-60 to 330/350 ℃
227-36020-01	0.25 mm	0.40 µm	30 m	-60 to 330/350 ℃
227-36021-01	0.25 mm	0.50 µm	15 m	-60 to 330/350 ℃
221-75941-30	0.25 mm	0.50 µm	30 m	-60 to 330/350 ℃
221-75942-60	0.25 mm	0.50 µm	60 m	-60 to 330/350 ℃
227-36022-01	0.25 mm	1.00 µm	15 m	-60 to 330/350 ℃
227-36022-02	0.25 mm	1.00 µm	30 m	-60 to 330/350 ℃
227-36022-03	0.25 mm	1.00 µm	60 m	-60 to 330/350 ℃
227-36023-01	0.32 mm	0.25 µm	15 m	-60 to 330/350 ℃
221-75943-30	0.32 mm	0.25 µm	30 m	-60 to 330/350 ℃
227-36023-02	0.32 mm	0.25 µm	60 m	-60 to 330/350 ℃
227-36024-01	0.32 mm	0.50 µm	15 m	-60 to 330/350 ℃
221-75944-30	0.32 mm	0.50 µm	30 m	-60 to 330/350 ℃
227-36024-02	0.32 mm	0.50 µm	60 m	-60 to 330/350 ℃
227-36025-01	0.32 mm	1.00 µm	15 m	-60 to 330/350 ℃
227-36025-02	0.32 mm	1.00 µm	30 m	-60 to 330/350 ℃
227-36025-03	0.32 mm	1.00 µm	60 m	-60 to 330/350 ℃
227-36026-01	0.53 mm	0.25 µm	15 m	-60 to 330/350 ℃
227-36026-02	0.53 mm	0.25 µm	30 m	-60 to 330/350 ℃
227-36027-01	0.53 mm	0.50 µm	15 m	-60 to 330/350 ℃
227-36027-02	0.53 mm	0.50 µm	30 m	-60 to 330/350 ℃
227-36028-01	0.53 mm	1.00 µm	15 m	-60 to 330/350 ℃
227-36028-02	0.53 mm	1.00 µm	30 m	-60 to 330/350 ℃
227-36029-01	0.53 mm	1.50 µm	15 m	-60 to 330/350 ℃
227-36029-02	0.53 mm	1.50 µm	30 m	-60 to 330/350 ℃

SH-I-5MSカラムのIntegrated Guardカラムページをお求めの場合は、Integrated Guard ページをご参照ください。
