Integrated Guard Columns

概要

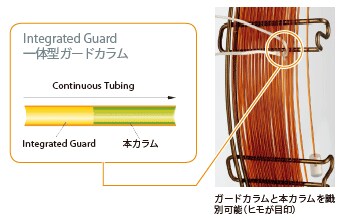

分析カラムにガードカラムをつけた状態で出荷することで、接続用コネクターやユニオンは不要
ユニオン部における吸着は心配無用
一体型なので、リークなどのガードカラム接続によるトラブルや手間を回避することが可能

価格表（島津GLCサイトへ）

P/N	Column	ID（内径）	df（膜厚）	長さ	一体型ガードカラム
221-75719-31	SH-1	0.25 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-75731-31	SH-1	0.53 mm	1.00 µm	30 m	with 5 m Integrated Guard
227-36333-01	SH-1	0.53 mm	1.50 µm	30 m	with 5 m Integrated Guard
221-75734-31	SH-1	0.53 mm	5.00 µm	30 m	with 5 m Integrated Guard
227-36346-01	SH-I-1MS	0.25 mm	0.10 µm	15 m	with 2 m Integrated Guard
221-76164-35	SH-1301	0.53 mm	3.00 µm	30 m	with 5 m Integrated Guard
221-76185-30	SH-1701	0.25 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-76153-05	SH-5	0.25 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-76153-30	SH-5	0.25 mm	0.25 µm	30 m	with 10 m Integrated Guard
221-76179-30	SH-5	0.25 mm	1.00 µm	30 m	with 5 m Integrated Guard
221-76177-30	SH-5	0.32 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-76177-60	SH-5	0.32 mm	0.25 µm	60 m	with 5 m Integrated Guard
221-76180-30	SH-5	0.32 mm	1.00 µm	30 m	with 5 m Integrated Guard
221-76154-35	SH-5	0.53 mm	5.00 µm	30 m	with 5 m Integrated Guard
221-76189-30	SH-5MS	0.25 mm	0.10 µm	30 m	with 5 m Integrated Guard
221-75861-15	SH-5MS	0.25 mm	0.25 µm	15 m	with 5 m Integrated Guard
221-75861-05	SH-5MS	0.25 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-75861-10	SH-5MS	0.25 mm	0.25 µm	30 m	with 10 m Integrated Guard
221-76190-30	SH-5MS	0.32 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-76161-30	SH-I-5Sil MS	0.25 mm	0.25 µm	30 m	with 5 m Integrated Guard
221-76162-30	SH-I-5Sil MS	0.25 mm	0.25 µm	30 m	with 10 m Integrated Guard
221-76183-30	SH-624	0.25 mm	1.40 µm	30 m	with 5 m Integrated Guard
221-76157-35	SH-624	0.32 mm	1.80 µm	30 m	with 5 m Integrated Guard
221-76158-30	SH-624	0.53 mm	3.00 µm	30 m	with 5 m Integrated Guard
