SH-5MS

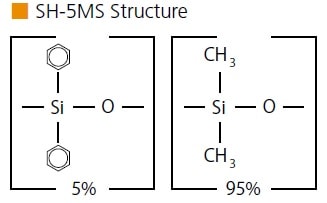

  • 微極性液相:Crossbond™ 5% ジフェニル / 95% ジメチルポリシロキサン
  • GC/MS 向けの低ブリード汎用カラム
  • USP G27、G36 液相相当カラム
  • 相当品:HP-5, DB-5, CP Sil 8 CB, SPB-5

価格表(島津GLCサイトへ)

P/N ID(内径) df(膜厚) 長さ 温度範囲
221-75854-15 0.25 mm 0.10 µm 15 m -60 to 330/350 ℃
221-75854-30 0.25 mm 0.10 µm 30 m -60 to 330/350 ℃
227-36122-01 0.25 mm 0.10 µm 60 m -60 to 330/350 ℃
221-75855-15 0.25 mm 0.25 µm 15 m -60 to 330/350 ℃
221-75855-30 0.25 mm 0.25 µm 30 m -60 to 330/350 ℃
227-36123-01 0.25 mm 0.25 µm 60 m -60 to 330/350 ℃
227-36124-01 0.25 mm 0.50 µm 30 m -60 to 330/350 ℃
227-36124-02 0.25 mm 0.50 µm 60 m -60 to 320/350 ℃
221-75857-30 0.25 mm 1.00 µm 30 m -60 to 325/350 ℃
227-36125-01 0.32 mm 0.10 µm 30 m -60 to 330/350 ℃
227-36125-02 0.32 mm 0.10 µm 60 m -60 to 330/350 ℃
221-75858-30 0.32 mm 0.25 µm 30 m -60 to 330/350 ℃
221-75858-60 0.32 mm 0.25 µm 60 m -60 to 330/350 ℃
227-36126-01 0.32 mm 0.50 µm 30 m -60 to 330/350 ℃
227-36126-02 0.32 mm 0.50 µm 60 m -60 to 330/350 ℃
227-36127-01 0.32 mm 1.00 µm 30 m -60 to 325/350 ℃
221-76191-30 0.53 mm 0.50 µm 30 m -60 to 320/340 ℃
227-36128-01 0.53 mm 1.00 µm 30 m -60 to 320/340 ℃
227-36129-01 0.53 mm 1.50 µm 30 m -60 to 310/330 ℃

SH-5MSカラムのIntegrated Guardカラムページをお求めの場合は、Integrated Guard ページをご参照ください。
