SH-5

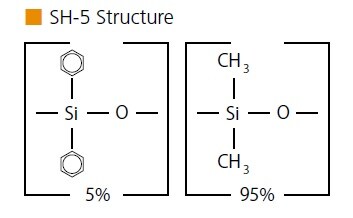

  • 微極性液相：Crossbond™ 5％ ジフェニル / 95％ ジメチルポリシロキサン
  • USP G27、G36 液相相当カラム
  • 相当品：HP-5, DB-5, CP Sil 8 CB, SPB-5

価格表（島津GLCサイトへ）

P/N ID（内径） df（膜厚） 長さ 温度範囲
221-75700-15 0.25 mm 0.10 µm 15 m -60 to 330/350 ℃
221-75700-30 0.25 mm 0.10 µm 30 m -60 to 330/350 ℃
227-36109-01 0.25 mm 0.10 µm 60 m -60 to 330/350 ℃
227-36313-01 0.25 mm 0.25 µm 15 m -60 to 330/350 ℃
221-75701-30 0.25 mm 0.25 µm 30 m -60 to 330/350 ℃
227-36110-01 0.25 mm 0.25 µm 60 m -60 to 330/350 ℃
227-36111-02 0.25 mm 0.50 µm 15 m -60 to 330/350 ℃
221-76178-25 0.25 mm 0.50 µm 25 m -60 to 330/350 ℃
221-76178-30 0.25 mm 0.50 µm 30 m -60 to 330/350 ℃
227-36111-01 0.25 mm 0.50 µm 60 m -60 to 330/350 ℃
227-36112-02 0.25 mm 1.00 µm 15 m -60 to 320/340 ℃
221-75702-30 0.25 mm 1.00 µm 30 m -60 to 320/340 ℃
227-36112-01 0.25 mm 1.00 µm 60 m -60 to 320/340 ℃
227-36312-01 0.32 mm 0.10 µm 15 m -60 to 330/350 ℃
227-36113-01 0.32 mm 0.10 µm 30 m -60 to 330/350 ℃
221-75703-15 0.32 mm 0.25 µm 15 m -60 to 330/350 ℃
221-75703-30 0.32 mm 0.25 µm 30 m -60 to 330/350 ℃
221-75703-60 0.32 mm 0.25 µm 60 m -60 to 330/350 ℃
221-75704-30 0.32 mm 0.50 µm 30 m -60 to 330/350 ℃
227-36114-01 0.32 mm 0.50 µm 60 m -60 to 330/350 ℃
227-36352-01 0.32 mm 1.00 µm 25 m -60 to 320/350 ℃
221-75705-30 0.32 mm 1.00 µm 30 m -60 to 320/350 ℃
221-75705-60 0.32 mm 1.00 µm 60 m -60 to 320/350 ℃
221-76181-30 0.32 mm 1.50 µm 30 m -60 to 310/330 ℃
227-36115-01 0.32 mm 1.50 µm 60 m -60 to 310/330 ℃
227-36116-01 0.32 mm 3.00 µm 30 m -60 to 280/300 ℃
227-36116-02 0.32 mm 3.00 µm 60 m -60 to 280/300 ℃
227-36117-02 0.53 mm 0.10 µm 15 m -60 to 320/340 ℃
227-36117-01 0.53 mm 0.10 µm 30 m -60 to 320/340 ℃
227-36314-01 0.53 mm 0.25 µm 15 m -60 to 320/340 ℃
221-75708-30 0.53 mm 0.25 µm 30 m -60 to 320/340 ℃
227-36118-01 0.53 mm 0.25 µm 60 m -60 to 320/340 ℃
227-36119-02 0.53 mm 0.50 µm 15 m -60 to 320/330 ℃
221-75709-30 0.53 mm 0.50 µm 30 m -60 to 300/330 ℃
227-36119-01 0.53 mm 0.50 µm 60 m -60 to 320/330 ℃
221-75710-15 0.53 mm 1.00 µm 15 m -60 to 320/330 ℃
221-75710-30 0.53 mm 1.00 µm 30 m -60 to 320/330 ℃
221-75710-60 0.53 mm 1.00 µm 60 m -60 to 320/330 ℃
221-75711-15 0.53 mm 1.50 µm 15 m -60 to 310/330 ℃
221-75711-30 0.53 mm 1.50 µm 30 m -60 to 310/330 ℃
227-36120-01 0.53 mm 1.50 µm 60 m -60 to 310/330 ℃
221-75712-30 0.53 mm 3.00 µm 30 m -60 to 270/290 ℃
227-36121-01 0.53 mm 3.00 µm 60 m -60 to 270/290 ℃
221-75713-30 0.53 mm 5.00 µm 30 m -60 to 270/290 ℃
221-75713-60 0.53 mm 5.00 µm 60 m -60 to 270/290 ℃

SH-5カラムのIntegrated Guardカラムページをお求めの場合は、Integrated Guard ページをご参照ください。
