SH-20

Add Bookmark

SH-20

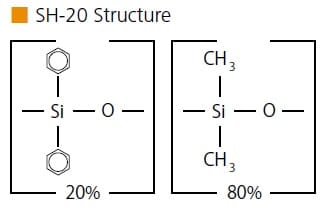

  • 中極性液相：Crossbond™ 20% ジフェニル / 80% ジメチルポリシロキサン
  • 揮発性化合物、風味化合物、アルコール飲料の分析に適合
  • USP G28、G32 液相相当カラム
  • 相当品：SPB-20

価格表（島津GLCサイトへ）

P/N ID（内径） df（膜厚） 長さ 温度範囲
227-36130-01 0.25 mm 0.10 µm 30 m -20 to 300/320 ℃
227-36131-01 0.25 mm 0.25 µm 30 m -20 to 300/320 ℃
227-36131-02 0.25 mm 0.25 µm 60 m -20 to 300/320 ℃
227-36132-01 0.25 mm 0.50 µm 30 m -20 to 290/310 ℃
227-36133-01 0.25 mm 1.00 µm 30 m -20 to 280/300 ℃
227-36133-02 0.25 mm 1.00 µm 60 m -20 to 280/300 ℃
227-36135-01 0.32 mm 0.25 µm 30 m -20 to 300/320 ℃
227-36136-01 0.32 mm 0.50 µm 30 m -20 to 290/310 ℃
227-36137-01 0.32 mm 1.00 µm 30 m -20 to 280/300 ℃
227-36137-02 0.32 mm 1.00 µm 60 m -20 to 280/300 ℃
227-36138-01 0.32 mm 1.50 µm 30 m -20 to 270/290 ℃
227-36138-02 0.32 mm 1.50 µm 60 m -20 to 270/290 ℃
227-36139-01 0.32 mm 3.00 µm 30 m -20 to 250/270 ℃
227-36139-02 0.32 mm 3.00 µm 60 m -20 to 250/270 ℃
227-36142-01 0.53 mm 0.50 µm 30 m -20 to 260/280 ℃
227-36143-01 0.53 mm 1.00 µm 30 m -20 to 260/280 ℃
227-36144-01 0.53 mm 1.50 µm 30 m -20 to 250/270 ℃
227-36145-01 0.53 mm 3.00 µm 30 m -20 to 240/260 ℃

SH-20カラムのIntegrated Guardカラムページをお求めの場合は、Integrated Guard ページをご参照ください。
