赤外顕微鏡用ダイヤモンドATR対物レンズ

フーリエ変換赤外分光光度計

赤外顕微鏡のレボルバーに、赤外顕微鏡用ダイヤモンドATR対物レンズ DAOSを搭載すると、ダイヤモンドを通して測定部位を観察しながらダイヤモンドATR測定が行えます。内部LEDにより、明るい視野で可視画像が観察でき、硬度の高いダイヤモンドで固い試料の測定が可能です。

  • 赤外顕微鏡ソフトウェア AMsolutionのDAOS用特注オプションインストーラが必要です。
  • 赤外ラマン顕微鏡 AIRsightには取り付けができません。
  • ATRプリズムと試料が密着する直前の画像

    ATRプリズムと試料が密着する直前の画像

  • ATRプリズムと試料が密着しているときの画像

    ATRプリズムと試料が密着しているときの画像

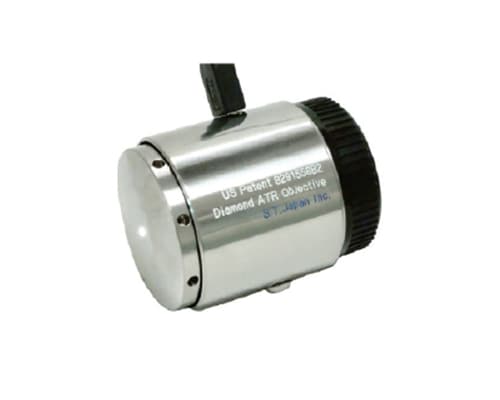

  • DAOSの外観

    DAOSの外観

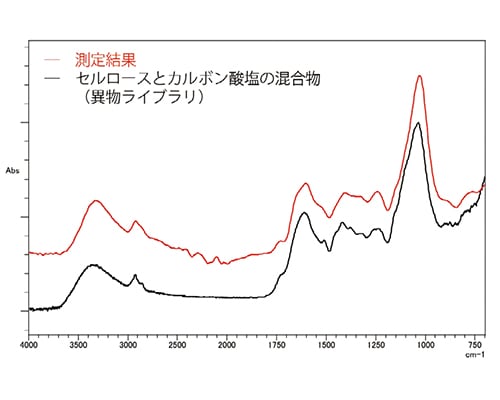

  • 測定結果とライブラリ検索結果の重ね描き

    測定結果とライブラリ検索結果の重ね描き

対象試料

赤外顕微鏡の対象となる微小試料全般
