大気成分の分析例

温室効果ガスアナライザーは、1サイクル約10分で分析が可能です。

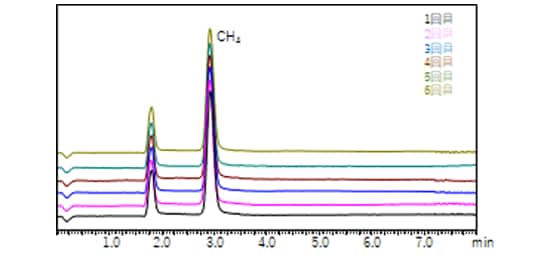

  • 大気連続分析のクロマトグラム（FID）
    FID

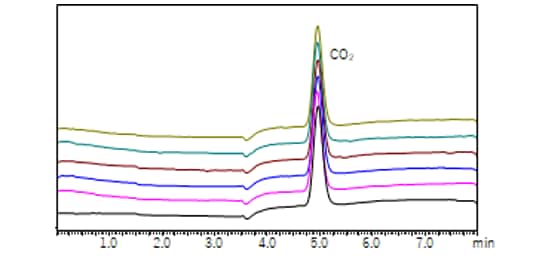

  • 大気連続分析のクロマトグラム（TCD）
    TCD

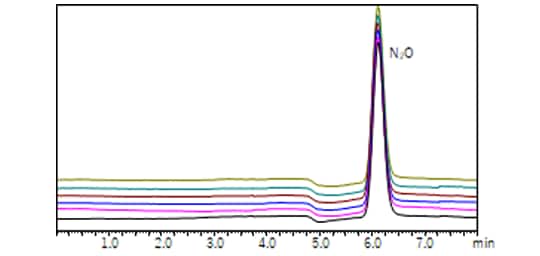

  • 大気連続分析のクロマトグラム（ECD）
    ECD
  •   CH4 CO2 N2O
    面積再現性
    (%RSD)    		 0.53 0.49 0.41
    定量値
    (ppm)    		 2.02 434 0.332

    大気測定時の面積再現性及び定量値（n=6)
