Valve Rotor Replacement Procedure
Required devices¶
No. |
Parts name |
Category |
Required number |
Note |
---|---|---|---|---|
① |
Pliers |
1 |
||
② |
Tweezers |
1 |
||
③ |
Screw driver |
1 |
||
④ |
Valve rotor |
1 |
Procedures¶
Step 1¶
Remove the cover as described in Installation and Removal of Maintenance Cover .
Step 2-1¶
For the HS-20 and HS-20 L.T, remove the valve rotor fastening screw (①).
Use pliers if tight.
Step 2-2¶
For the HS-20 Trap, remove the valve rotor fastening screw.
When replacing both valve rotors, remove the valve rotor fastening screws on both sides (①: valve (left), ②: valve (right)).
Use pliers if tight.
Step 3¶
Remove the valve rotor ① using tweezers.
The same is true for HS-20 Trap when the valve rotor of valve (right) is also replaced.
Step 4¶
Prepare a new valve rotor.
The type of valve rotor used varies depending on the type of HS-20.
Step 5¶
Attach a new valve rotor using tweezers.

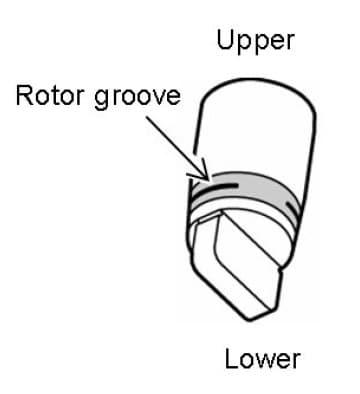

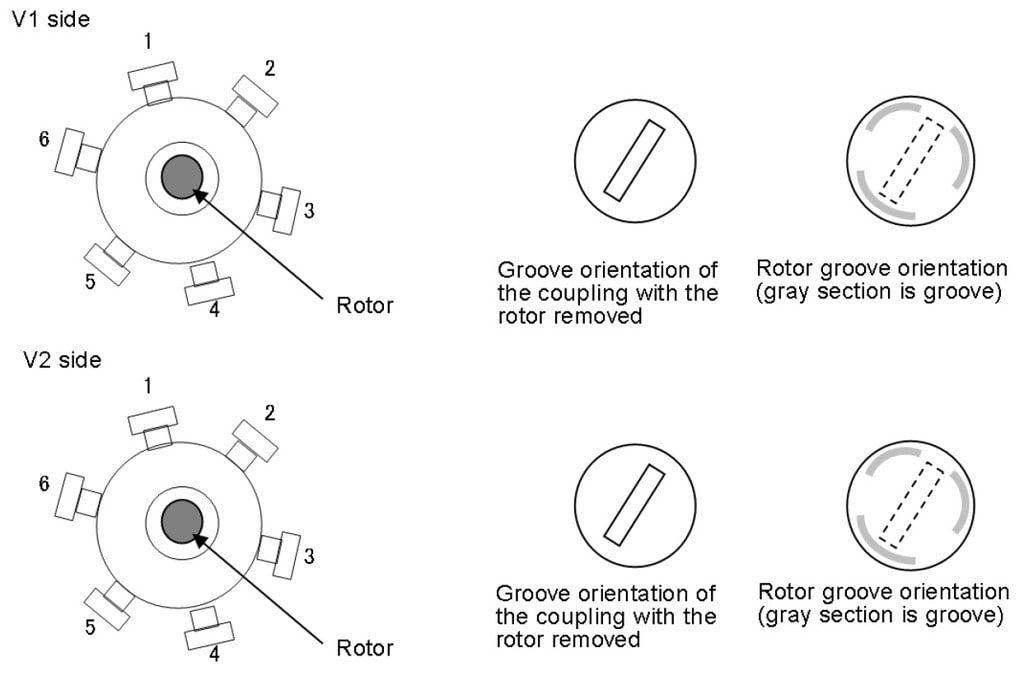

Be careful of the orientation when installing. (Analysis cannot be performed if installed in the reverse orientation.)
Step 6¶
Tighten the fastening screw of the valve rotor by hand.
Step 7¶
Install the cover as described in Installation and Removal of Maintenance Cover .
