Range of Linear Temperature Rise

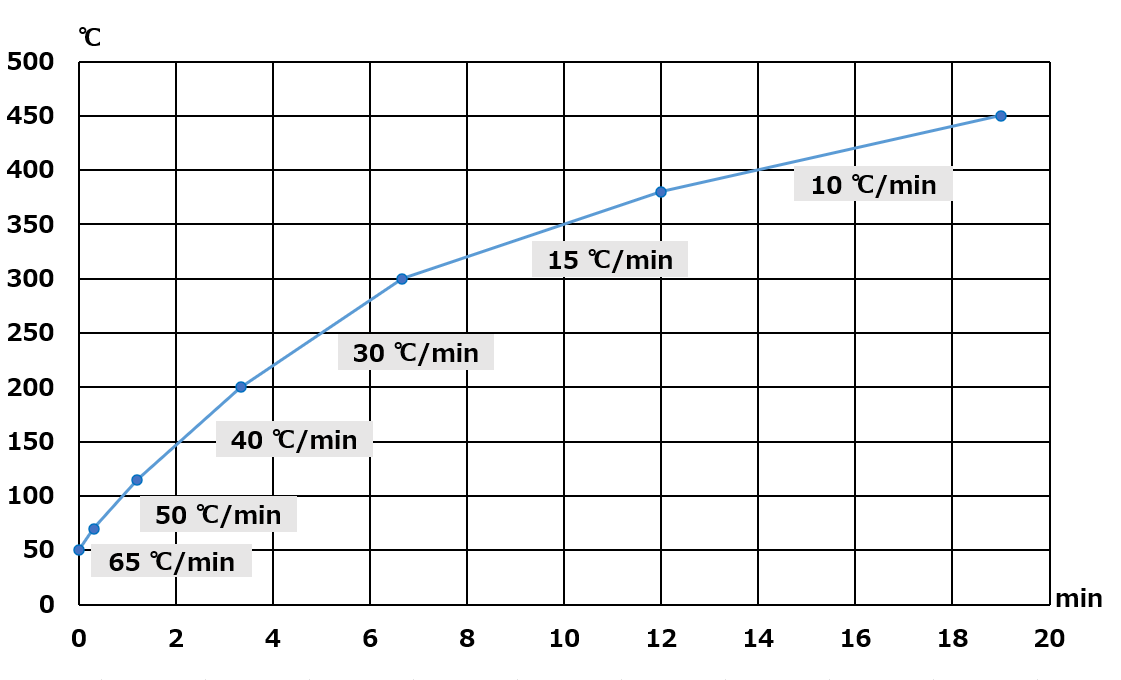

100 V, 115 V¶

Range of temperature	Rate of temperature rise
to 70 ℃	0 ℃ to 65 ℃/min
to 115 ℃	0 ℃ to 50 ℃/min
to 200 ℃	0 ℃ to 40 ℃/min
to 300 ℃	0 ℃ to 30 ℃/min
to 380 ℃	0 ℃ to 15 ℃/min
to 450 ℃	0 ℃ to 10 ℃/min

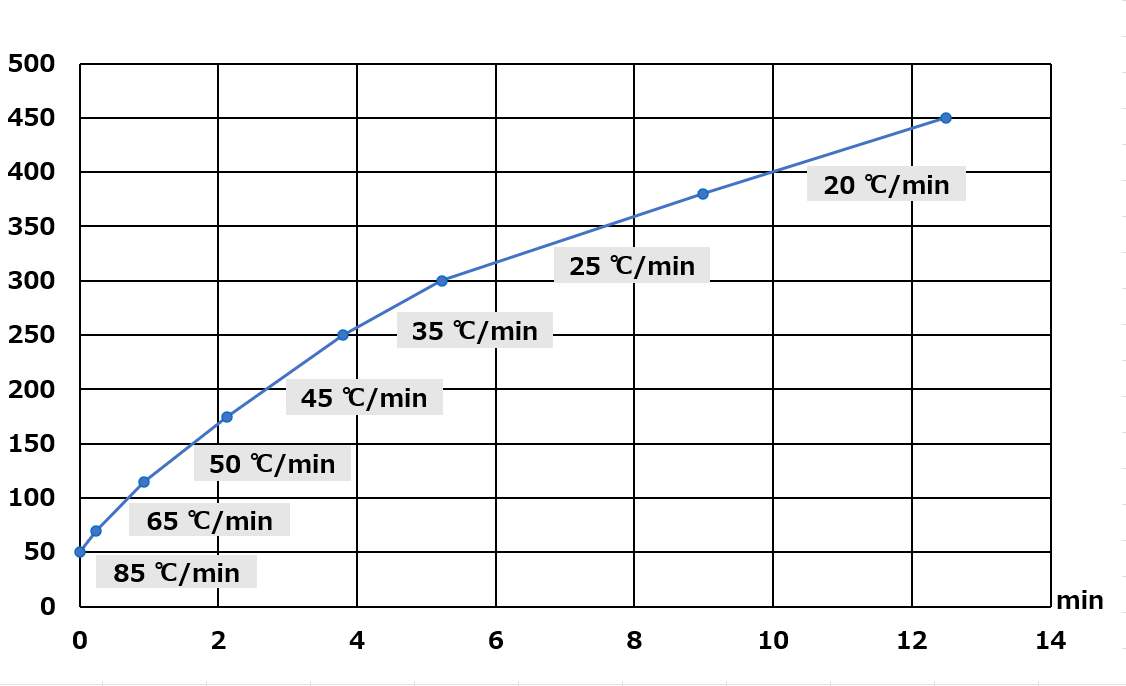

200 V¶

Range of temperature	Rate of temperature rise
to 70 ℃	0 ℃ to 85 ℃/min
to 115 ℃	0 ℃ to 65 ℃/min
to 175 ℃	0 ℃ to 50 ℃/min
to 250 ℃	0 ℃ to 45 ℃/min
to 300 ℃	0 ℃ to 35 ℃/min
to 380 ℃	0 ℃ to 25 ℃/min
to 450 ℃	0 ℃ to 20 ℃/min

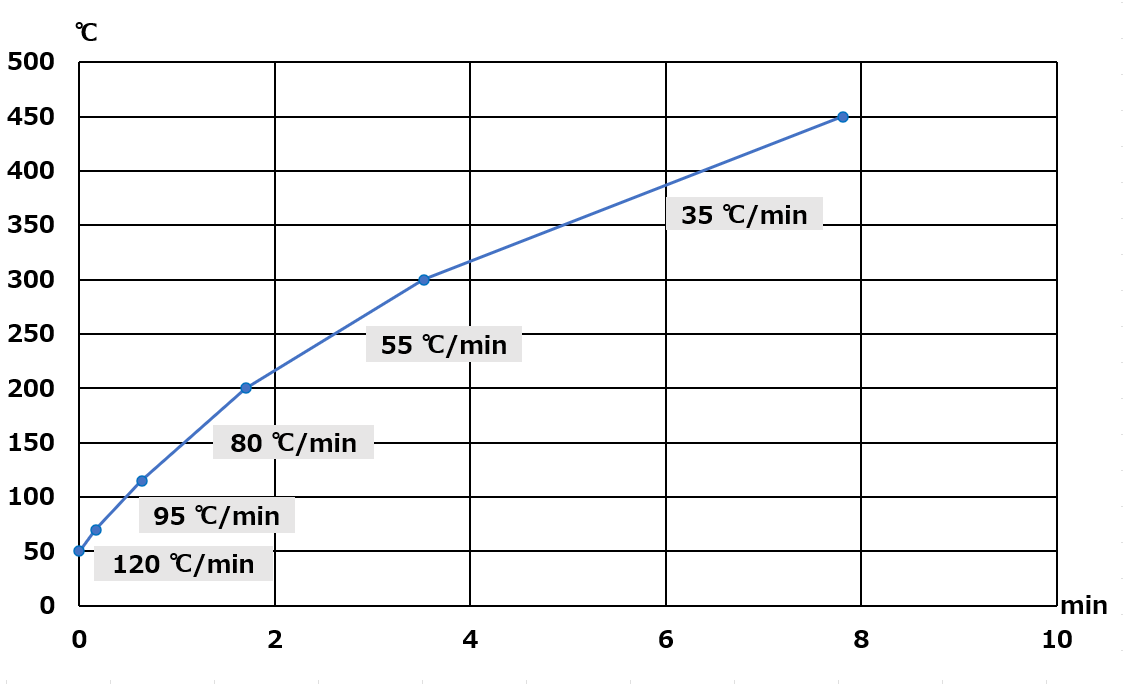

230 V¶

Range of temperature	Rate of temperature rise
to 70 ℃	0 ℃ to 120 ℃/min
to 115 ℃	0 ℃ to 95 ℃/min
to 175 ℃	0 ℃ to 80 ℃/min
to 300 ℃	0 ℃ to 55 ℃/min
to 450 ℃	0 ℃ to 35 ℃/min
