Parts for Capillary Column Connection
Parts name |
Part number |
Note |
---|---|---|
CUTTER,CAPILLARY TUBE |
For cutting capillary columns |
|
Capillary Cutter (Plate Type) |
For cutting capillary columns |
|
Press-Tight connector |
Pack of 5. Used for capillary columns with inner diameter from 0.2 to 0.53 mm. |
Graphite Ferrule¶
Parts name |
Part number |
Note |
---|---|---|
SLIT NUT |
Pack of 5 For Graphite Ferrule |
|
NON SLIT NUT |
Pack of 10 For Graphite Ferrule |
|
Graphite Ferrule 0.5 |
Pack of 10 For columns with an outer diameter less than 0.5 mm |
|
Graphite Ferrule 0.8 |
Pack of 10 For columns with an outer diameter less than 0.8 mm |
|
Graphite jig, WBI |
221-41532-01 |
Use it to fix the graphite ferrule temporarily on the column. |
Graphite jig, BID (BID Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, SPL (SPL/PTV Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, FID (FID Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, ECD_43mm (ECD Column insertion jig) |
Refer to
Method for distinguishing the different ECD flow paths
and use for flow line path A. Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, ECD_32mm (ECD Column insertion jig) |
Refer to
Method for distinguishing the different ECD flow paths
and use for flow line path B. Use it to fix the graphite ferrule temporarily on the column. |
|

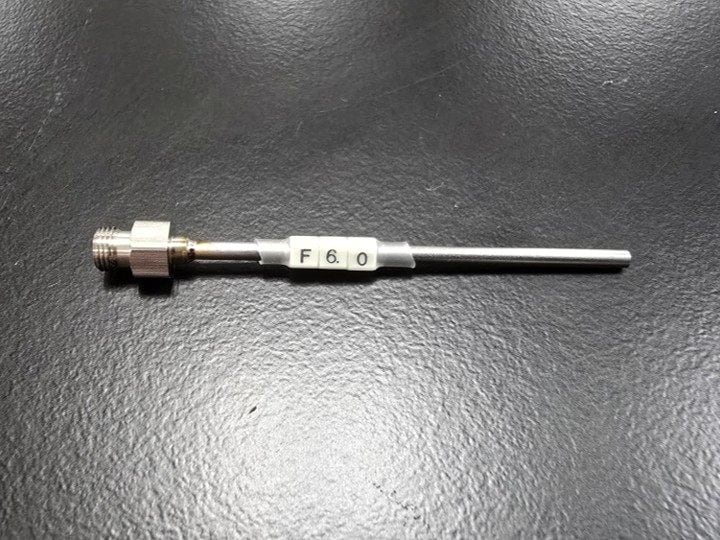

Graphite jig, FPD (FPD Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, TCD (TCD Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, FTD (FTD Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
|
Graphite jig, STCD (STCD Column insertion jig) |
Use it to fix the graphite ferrule temporarily on the column. |
ClickTek Ferrule¶
Parts name |
Part number |
Note |
---|---|---|
ClickTek Connector |
||
ClickTek Ferrule For Narrow Bore 0.43 |
||
ClickTek Ferrule For Middle Bore 0.5 |
||
ClickTek Ferrule For Wide Bore 0.73 |
||
ClickTek Ferrule Holeless |
221-81162-00 |
Use it for sealing. |
Pre-Fix Tool Ver.2 |
||
ClickTek Ferrule Installation Kit for Narrow Bore/Middle Bore |
221-82335-41 |
|
ClickTek Ferrule Installation Kit for Wide Bore |
221-82335-42 |
|
ClickTek adapter for SPL |
221-77156-41 |
|
ClickTek adapter for FID |
221-77156-42 |
|
ClickTek adapter for TCD |
221-77156-43 |
|
ClickTek adapter for BID |
221-77156-44 |
|
ClickTek adapter for FTD |
221-77156-45 |
|
ClickTek adapter for FPD |
221-77156-46 |
|
ClickTek adapter for TCD Ver.2 |
221-77156-53 |
|
ClickTek adapter for ECD Ver.2 |
221-77156-57 |
Refer to
Method for distinguishing the different ECD flow paths
and use it for flow line path A. |
ClickTek adapter for ECD-U Ver.2 |
221-77156-61 |
Refer to
Method for distinguishing the different ECD flow paths
and use it for flow line path B. |
ClickTek adapter for BID Ver.2 |
221-77156-58 |
|
ClickTek adapter for FTD Ver.2 |
221-77156-59 |
|
ClickTek adapter for STCD Ver.2 |
222-31327-41 |
|
AU GASKET |
221-48990 |
|
Heating Cup For ClickTek |
221-76508-41 |
Graphite Vespel Ferrule¶
Parts name |
Part number |
Note |
---|---|---|
Graphite Vespel Ferrule GVF-16-004 |
Pack of 10. Used for columns with inner diameter of 0.25 mm or less. |
|
Graphite Vespel Ferrule GVF-16-005 |
670-15003-04 |
Pack of 10. Used for columns with inner diameter of 0.32 mm. |
Graphite Vespel Ferrule GVF-16-008 |
670-15003-07 |
Pack of 10. Used for columns with inner diameter of 0.53 mm. |
Graphite Vespel Ferrule GVF-16-000 |
670-15003-01 |
Pack of 10 Vespel ferrules without a hole. Used to seal the interface during maintenance, such as when checking the vacuum state. |
NUT, SSNE16/012 |
Pack of 5. Used for connecting Vespel ferrules. Used for HS-20, GCMS, and SCD. |
|
AU GASKET |
221-48990 |
|
Column Installation Jig (for INJ) |
Included in tool kit (sold separately). Equivalent to part number 225-11657-09. |
|
Graphite Vespel jig, SCD (SCD Column insertion jig), Short |
221-83764-01 |
For left installation model |
Graphite Vespel jig, SCD (SCD Column insertion jig), Long |
221-83764 |
For right installation model |
