Sulfur Chemiluminescence Detector (SCD)

Parts name
Part number
Note
SCD Consumable Parts
221-84141-41
3 inner pyrotubes, 1 outer pyrotube, 3 ferrules for the inner pyrotube, 1 back ring for the inner pyrotube, 1 O-ring for the outer pyrotube, 1 ferrule for the transfer line
SCD consumables set, 2nd Class Pyrotube
221-84141-42
Inner pyrotube 3 pcs, Outer pyrotube 1 pc, Ferrule for inner pyrotube 3 pcs, Back ring for inner pyrotube 1 pc, O-ring for outer pyrotube 1 pc, and Ferrule for transfer line 1 pc. This is a lower-cost pyrotube with reduced sensitivity specifications compared to the standard item (221-84141-41).
PTFE Ferrule
228-16007-84
Pack of 5, for inner pyrotube
O-ring, 4D P3
036-11201-84
Pack of 5, for outer pyrotube
Ozone Scrubber
221-84384-41
Filling Material in the Ozone Scrubber
221-84142-41
DAU-20 Maintenance Kit
221-82894-50

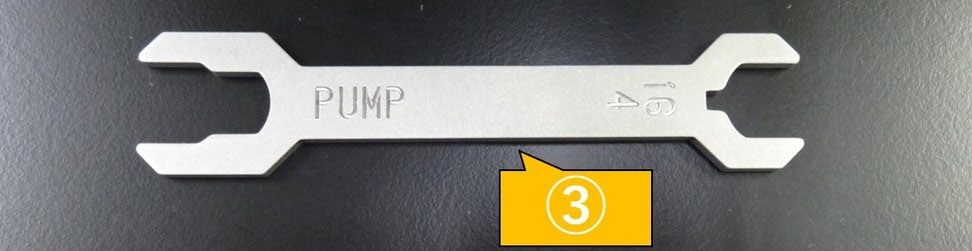

Spanner, SCD, Maintenance
221-84181

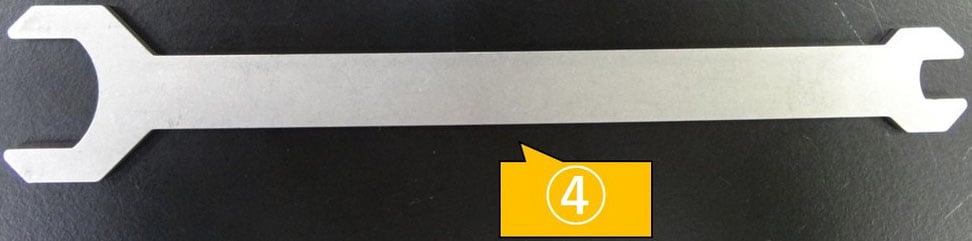

Spanner, SCD
221-83722
Spanner for Column Nut,3/16×1/4
225-20801-01
Installing JIG for Inner Pyrotube
221-87403-41
SCD inner pyrotube jig
221-87403-41
Use it to install the inner pyrotube.
