<概略仕様>

形 名(P/N) ひょう量 最小表示 さらの大きさ(nm) 価 格
BL-220H
(S321-61753-02)
220g 0.001g 100×100(mm) ¥89,000
BL-320H
(S321-61753-05)
320g 0.001g 100×100(mm) ¥98,000
BL-320S
(S321-61753-12)
320g 0.01g 100×100(mm) ¥69,000
BL-620S
(S321-61753-13)
620g 0.01g 159×126(mm) ¥77,000
BL-2200H
(S321-61753-04)
2200g 0.01g 159×126(mm) ¥89,000
BL-3200H
(S321-61753-06)
3200g 0.01g 159×126(mm) ¥98,000
BL-3200S
(S321-61753-15)
3200g 0.1g 159×126(mm) ¥69,000

※ カラットで使用時は最小表示が5とびの表示となります。

<寸法>

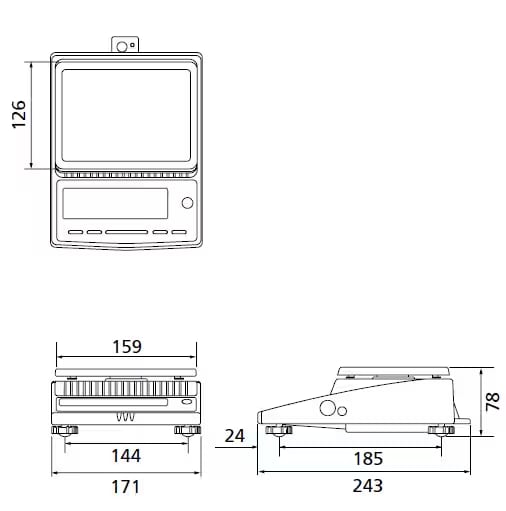

BL 大皿タイプ寸法図

大皿タイプ
(ひょう量:620g以上のタイプ)

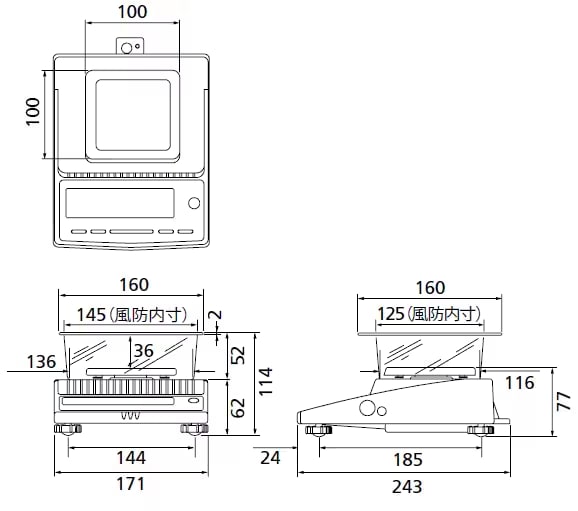

BL 小皿タイプ寸法図

小皿タイプ
(ひょう量:320g以下のタイプ)


(単位:mm)

※ 外観および仕様は改良のため,予告なく変更することがありますのでご了承ください。また表記の価格はすべて消費税抜きの価格です。
