PURn is not controlled [Error Code:9055 9056 9057 9058]

Cause

The analysis was started when the purge control was set to [Off].

Solution

Set [Septum Purge] to [On] on [Purge Flow Program] screen, and then start the analysis.

GC instrument monitor setting

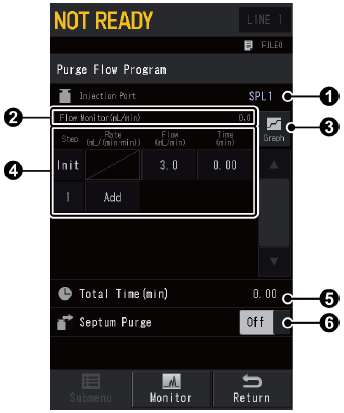

Press HOME button - [Injection port] - [Submenu] - [Purge Flow Program], and then display [Purge Flow Program] screen and turn [On] septum purge.

LabSolutions setting

Set the purge flow rate control in the device monitor window to [On].
