Maintenance works must only be undertaken after the temperature of each part has been lowered to less than 50 deg.C.
Place any detached items on a clean sheet or tray. Do not lose or contaminate these items.
Undertake the works using the appropriate tools. Any dirt on the tools being used must be wiped off in advance using gauze etc. dipped in acetone.
Do not remove the photomultiplier unit while the system is operating or the FPD is on as this may damage the photomultiplier.
Tools RequiredPhillips screwdriver, tweezers
Procedure|
1 |
Shutdown the system and stop the gas supply for detectors. |
|
|
2 |
|

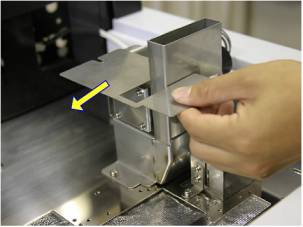

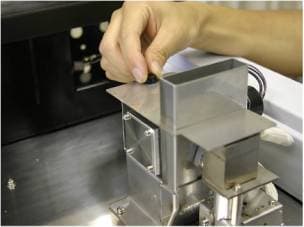

Loosen the knurled screw and remove the FPD cover.
|
|
3 |
|

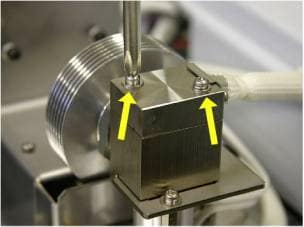

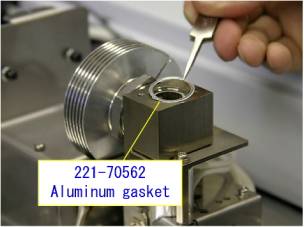

Remove the 2 screws and detach the head section. The alminum gasket needs to be replaced if it has either deteriorated or broken. Alminum gasket P/N 221-70562 |
|
4 |
|

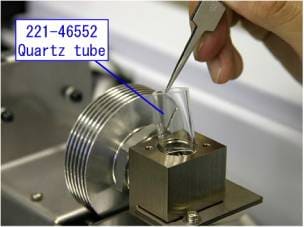

Pull out the quartz tube using tweezers. If dirty, it will either need to be cleaned or replaced. Quartz tube P/N 221-46552 |
|
5 |
Set either the new or cleaned quartz tube in place. |
|
|
6 |
Put an alminum gasket and attach the head section on it. Tighten the 2 screws. |
|
|
7 |
Put back the cover and tighten the knurled screw. |
|
|
8 |
Start up the system. |
|
